High-Speed Tattoo Pen with 3.5mm Stroke – Smooth, Consistent, and Long-Lasting Performance in 5 Vibrant Colors

Material：Aluminum

Output Voltage：4-12V

Color：Black

Used for：Embroidery tattoo

Features:three-speed memory mode

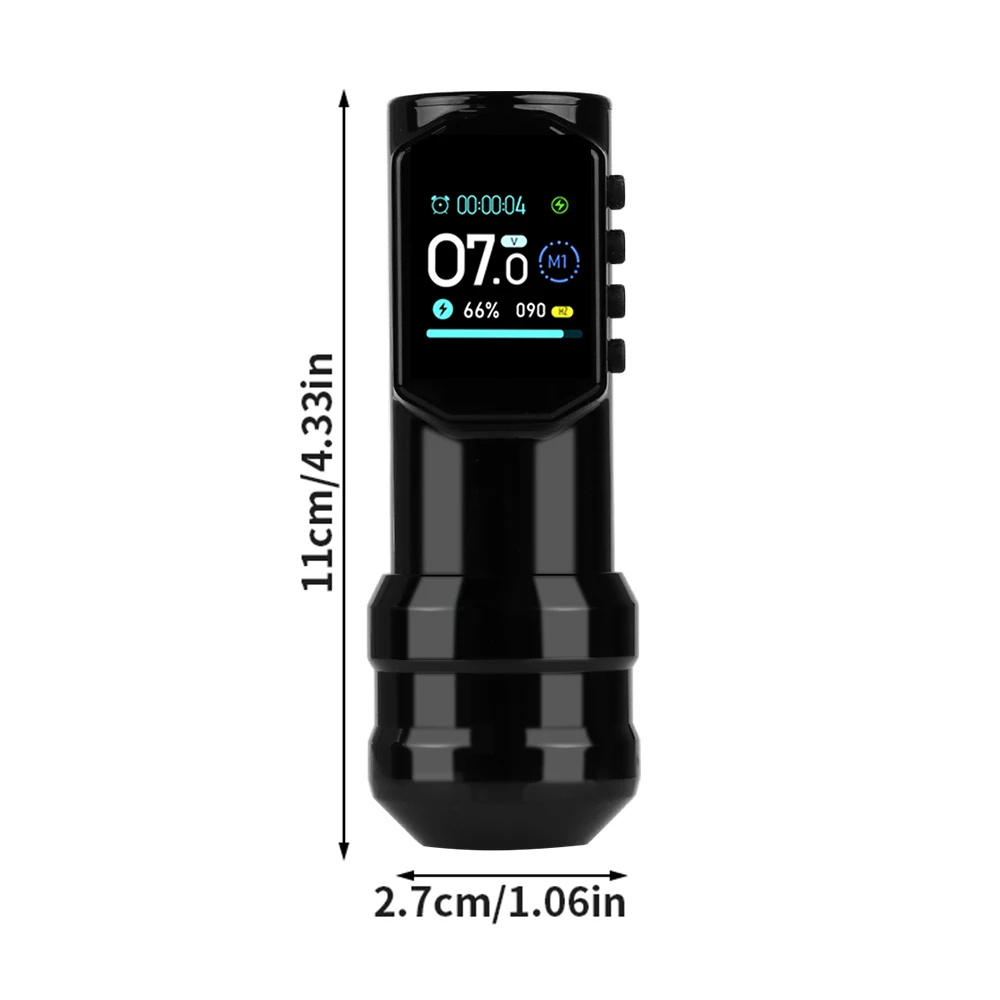

Product size: 2.7cm*11cm

Battery capacity: 1500mAh

Charging interface:USB Type-C charging

Selling point：

1.Quiet stability, strong movement motor, needle stability

2.New hand-slip anti-slip design, comfortable pen grip, good hand feeling, not tired for long time use

3.Tattoo machine pen has exquisite workmanship, high hardness and lightweight, unibody

4.There is an aluminum alloy protective layer at the interface of the needle cylinder and the tattoo pen, which is tightly combined and more wear-resistant.

5.Used for Embroidery tattoo

Appearance introduction:

A: TYPEC charging interface, K1: mode button, K2: plus button, K3: minus button, K4: switch button

B: Strong start logo, C: Working time, D: Memory gear, E: Output voltage, F G: Battery percentage, H: Punching/frequency

I: Needle length adjustment handle

Operating Instructions:

1. Press and hold K4 (switch button) to turn on/off the machine.

2. Long press K4 (switch button) to turn on/off the motor while the machine is on. (Blue V: open; gray V: closed;)

3. Double-click K4 (switch button) to clear the working timer.

4. Click K1 (mode button) to select the memory gear value, NPS value and HZ value in sequence.

5. Double-click K1 (mode button) to turn on/off the strong startup function.

6. Long press K1 (mode button) to switch between puncture mode/regular voltage mode.

7. Short press K2 (plus button) to slowly increase the adjustment voltage value/memory gear value/NPS value/HZ value.

8. Press and hold K2 (plus button) to quickly increase the adjustment voltage value/memory gear value/NPS value/HZ value.

9. Short press K3 (minus button) to slowly increase the adjustment voltage value/memory gear value/NPS value/HZ value.

10. Press and hold K3 (minus button) to quickly increase the adjustment voltage value/memory gear value/NPS value/HZ value.

Function description:

1. Without any operation, the screen brightness will be reduced after 10 seconds to reduce energy consumption and interference to the work process.

2. If the motor is not turned on, the machine will automatically shut down after 5 minutes to reduce battery energy consumption.

3. When the battery power is lower than 10%, the percentage value flashes. When the battery power is lower than 3%, the motor stops working and there is a low battery reminder.

4. During the operation of the motor, if a large current fault occurs, the motor will automatically stop working and prompt a blocked rotor fault code.

5. If a short-circuit fault occurs during the operation of the motor, the motor will automatically stop working and prompt a short-circuit fault code.

6. When the charger is connected at any time, the battery will directly enter the charging state, the charging symbol will be displayed on the screen, and the motor will be prohibited from working to ensure charging safety.
